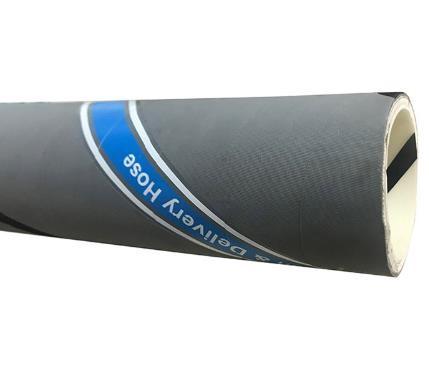

19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll

TYPE UASD

Conduction band UPE chemical hose

Applications:
hard wall hose suitable for a wide range of chemicals, petroleum product and oils, suitable for acid and chemicals in high concentration up to 98%.
Construction
Inner tube: Transparent, UPE, smooth, conductive through a black UPE helix stripe (R<106Ω), food grade.
Reinforcement: Plies of high strength synthetic cord, embedded steel wire helix, copper wires.
Cover: Gray EPDM rubber, smooth, conductive through a black helix stripe, abrasion, ozone and weather resistant, cloth finish (other color available upon request).
Temperature range: -40 °C~+100 °C

Standard/Approval: Meets FDA

Part no.	ID		OD	Bending radius	Work pressure		Length
Part no.	inch	mm	mm	mm	psi	bar	m
UASD019	3/4"	19.05	30	130	240	16	100
UASD025	1"	25.4	36	150	240	16	100
UASD032	1-1/4"	31.8	43	200	240	16	100
UASD038	1-1/2"	38.1	49	225	240	16	100
UASD051	2"	50.8	62	275	240	16	100
UASD063	2-1/2"	63.5	76	275	240	16	100
UASD076	3"	76.2	89	400	240	16	100
UASD102	4"	101.6	116	800	240	16	100
UASD127	5"	127	144	1300	240	16	100
UASD152	6"	152	171	1600	240	16	100

Packaging & Shipping

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
